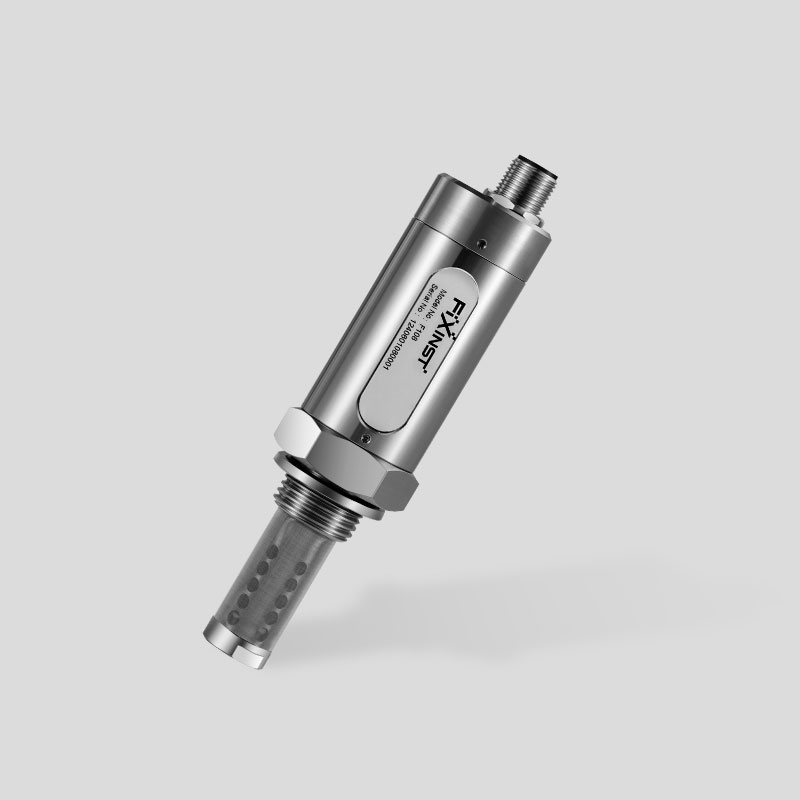

F108x FIXINST-A New-generation Al₂O₃ Standard Dewpoint Transmitter

Product Advantages：	Fast Response
Measurement Range：	-110 … +20 °Ctd

Product Overview

When the dewpoint of the measuring medium is below -40 °Ctd, the aluminum oxide sensor is the most accurate, responsive and long-term stable in comparison with other types of sensors. Meanwhile, it has excellent anti-pollution ability Revolutionary auto-calibration circuit design automatically compen sates for circuit drift caused by temperature, contamination, and aging, providing long-term stability and high accuracy measurements Innovative temperature compensation algorithm and multi-point temperature compensation calibration, greatly improving the sensor's temperature drift and ensuring high-precision dewpoint measurement over a wide temperature range

Advantages

Technical Data

Download

● FixInst new generation ultra-fast response aluminum oxide sensor technology

● Application in dewpoint < -60 °Ctd: Cold dryers, suction dryers, industrial gases ● 10+ points of dew point calibration and multi-point temperature compensation

provide accurate measurements up to ±2 °Ctd (Refer to“Technical Data”) ● Ultra-fast response time and outstanding long-term stability ● Anti-condensation, resistant to particulate contamination, oil vapor and most chemicals ● Excellent immunity to interference ● IP65 protection class, providing good protection even in harsh environments ● Provides comprehensive sensor setup, data transfer, software upgrades, and

maintenance via Modbus RTU (RS485) interface and powerful service APP ● Calibration is valid for two years, reducing maintenance

Measuring Range		Output
Dewpoint F108A F108B Temperature	-80 … +20 °Ctd -110 … +20 °Ctd -40 … +100 °C	Analog Output (Customized) Analog Resolution Analog Drift Digital Output Relay Output Connector	4 … 20 mA (3-wire) 0.002 mA 0.01% of span/°C Max. 500 ohm Modbus RTU (RS485) 5pin M8, Female
Accuracy		Operating Environment
Dewpoint (Air or Nitrogen) +20 … -60 °Ctd -60 … -100 °Ctd Temperature (Customized) 0 … + 50 °C -40 … 0 °C & +50 … +100 °C	±2 °Ctd ±3 °Ctd ±0.3 °C (Standard) ±0.5 °C (Standard)	Environment Temperature Storage Temperature Relative Humidity Sample Gas Flow Rate Pressure	-30 … +70 °C -40 … +80 °C 0 … 95 %RH > 1 L/min 0 … 5 MPa(a) 0 … 35 MPa(a) (Option)
Response Time		Other
Dewpoint: 63% [90%], Reference: 20 °C, 1bar(a), 4L/min		Process Connection Protection Code Housing Material Sensor Filter EMC	ISO G1/2" thread (Standard) 3/4" - 16 UNF thread (Customized) 5/8" - 18 UNF thread (Customized) IP65 SUS304 Stainless steel mesh filter (Filtration class 70 um) Compliant with IEC 61326-1
-50 → +20 °Ctd +20 → -50 °Ctd	20 sec [40 sec] 1 min [3 min]
Power
Measuring State	10 … 30 VDC Max 1.5W @ 24VDC

QG_General Dewpoint Meter_FIX_EN_2024-V1.03.pdf

603.29KB

Download

IM_F108x_Dewpoint Meter_FIX_EN_V1.03.pdf

1.07MB

Download

to the end ~

Advantages

Technical Data

Download

● FixInst new generation ultra-fast response aluminum oxide sensor technology

● Application in dewpoint < -60 °Ctd: Desiccant dryers, nitrogen generators, industrial gases ● 10+ points of dewpoint calibration and multi-point temperature compensation

provide accurate measurements up to ±2 °Ctd (Refer to "Technical Data" ) ● Ultra-fast response time and outstanding long-term stability ● Anti-condensation, resistant to particulate contamination, oil vapor and most chemicals ● Excellent immunity to interference ● IP65 protection class, providing good protection even in harsh environments ● Provides comprehensive sensor setup, data transfer, software upgrades, and

maintenance via Modbus RTU (RS485) interface and powerful service APP ● Calibration is valid for two years, reducing maintenance

Measuring Range		Output
Dewpoint F108A F108B Temperature	-80 … +20 °Ctd -110 … +20 °Ctd -40 … +100 °C	Analog Output (Customized) Analog Resolution Analog Drift Digital Output Relay Output Connector	4 … 20 mA (3-wire) 0.002 mA 0.01% of span/°C Max. 500 ohm Modbus RTU (RS485) 5pin M8, Female
Accuracy		Operating Environment
Dewpoint (Air or Nitrogen) +20 … -60 °Ctd -60 … -100 °Ctd Temperature (Customized) 0 … + 50 °C -40 … 0 °C & +50 … +100 °C	±2 °Ctd ±3 °Ctd ±0.3 °C (Standard) ±0.5 °C (Standard)	Environment Temperature Storage Temperature Relative Humidity Sample Gas Flow Rate Pressure	-30 … +70 °C -40 … +80 °C 0 … 95 %RH > 1 L/min 0 … 5 MPa(a) 0 … 35 MPa(a) (Option)
Response Time		Other
Dewpoint: 63% [90%], Reference: 20 °C, 1bar(a), 4L/min		Process Connection Protection Code Housing Material Sensor Filter EMC	ISO G1/2" thread (Standard) 3/4" - 16 UNF thread (Customized) 5/8" - 18 UNF thread (Customized) IP65 SUS304 Stainless steel mesh filter (Filtration class 70 um) Compliant with IEC 61326-1
-50 → +20 °Ctd +20 → -50 °Ctd	20 sec [40 sec] 1 min [3 min]
Power
Measuring State	10 … 30 VDC Max 1.5W @ 24VDC

Leaflet_F108x_Dewpoint Meter_FIX_EN_2024-V3.01.pdf

2.4MB

Download

QG_General Dewpoint Meter_FIX_EN_2024-V1.03.pdf

603.29KB

Download

IM_F108x_Dewpoint Meter_FIX_EN_V1.03.pdf

1.07MB

Download

to the end ~
