Auto-drain: Pitot tube differential pressure measurement principle, which is usually limited by the influence of condensate, dirty air pollution and clogging,The F201x-W, as the new generation flow meter, has an Auto-Drain function; it can realize pollution resistance Auto-heating: Accurate measurements in the moisture-saturated gas Ultra-wide measurement range: The very low measuring limit which can reach 5 Nm/s, and turndown ratio 1:60 Online auto-calibration: Automatic compensates the impacts of temperature change, pressure change, and sensor pollution Excellent vibration resistance: It is not affected by pipeline vibration Installation: Suitable for different pipe size: One flow meter can use in various diameter pipe

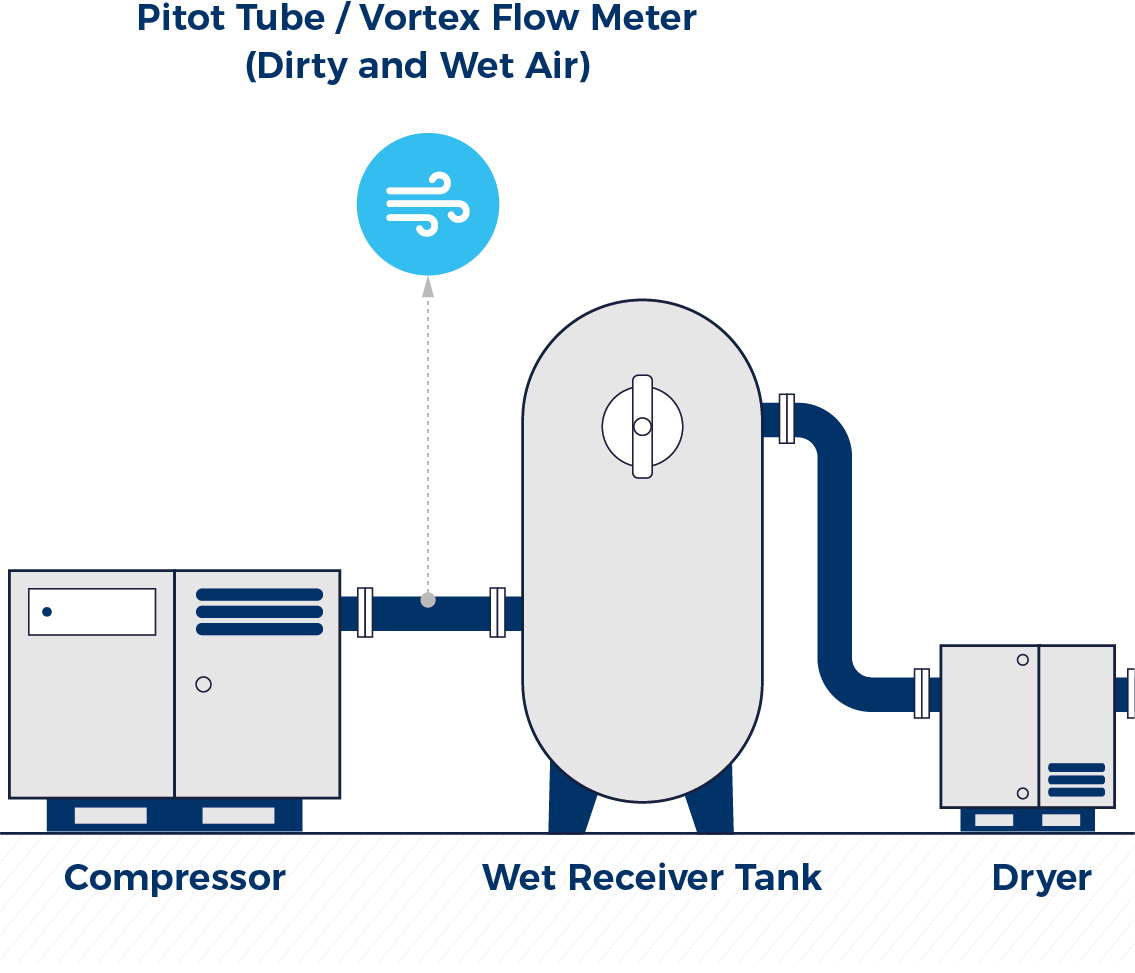

Install under pressure: Non-intrusive installation without downtime Install at outlet of the compressor: Outstandingadaptability to working conditions
Powerful working condition adaptability: Applicable for most pipelines, avoding piperework |
Advantages Technical Data Download |
Flow | Power | ||
Measuring Range Accuracy Medium Reference Conditions | 5 … 300 Nm/s ±(1.5% RD + 0.3% FS) [1% RD Option] Dry / wet air and non-corrosive gases 20 °C, 1 bar(a) - ISO 1217 (Configurable) | Measuring Stage Pre-warming Stage | 18 … 30VDC 6.5W @ 24VDC 18 … 30VDC 24W @ 24VDC |
Pressure | Display & Data Log | ||
Measuring Range Accuracy | 0 … 1.7 MPa(a) ±0.5% FS | Display Data Log | 2.8" IPS LCD with capacitive touch max. 10,000,000 values |
Temperaure | Operating Environment | ||
Measuring Range Accuracy | -40 … +150 °C ±0.5 °C | Environment Temperature Medium Temperature Operating Pressure | -20 … +60 °C -40 … +150 °C 0 … 1.7 MPa(a) |
Output | Other | ||
4~20 mA Output(Standard) Pulse (Standard) Digital Output Wireless Communication
| Flow rate / Temperature /Pressure (Configurable) Consumption / Alarm Modbus RTU (RS485) Bluetooth (Default) Wi-SUN (Option) IOT-4G (Option) 2 × 5pin M12, Female | Process Connection EMC Pole Section Material | G1/2" (ISO 228-1) Compliant with IEC 61326-1 SUS304 (Standard) SUS316 (Option) |
|
|
