F601A(B) Portable Installation Rogowski Coil Smart Power Meter

Product Advantages： Convenient Installation ；Good Universality
Measurement Range： Voltage Input：80 ~ 620 VAC (P-P)  ; Current Input：10 ~ 1000 A (F601x) / 30 ~ 3000 A (F601x-H)  ; Frequency Range：45 ~ 65 Hz
Product Overview

The F601A(B) is designed to measure current from 10 to 1000 A or 30 to 3000 A, and voltage from 80 to 620 V. The measurement is made using Rogowski coils, which allows for universal measurement across the entire current range without the need for complex transformer selection for different current. In addition, flexible Rokowski coils are very easy to use with large, irregularly  shaped conductors or in places where space is tight and handling is limited
F601A(B) can accurately measure electrical energy, current, voltage, power factor and harmonic distortion, which enables users to better manage power consumption to achieve energy saving, quality and efficiency purposes
ABUIABAEGAAghOH1uQYohZfJzQEwwSU4uAg
Advantages
Technical Data
Download

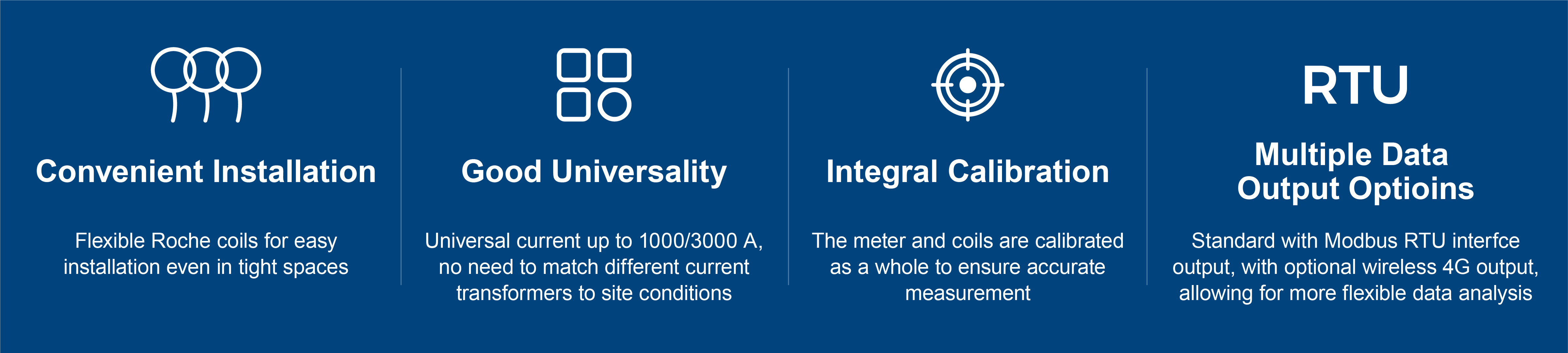

● Wide measuring range: current from 10 to 1000 A or 30 to 3000 A, and voltage from
   80 to 620 V ● Suitable for both online and portable measurements ● Easy to install with simple operation, no need to consider complex transformer selection ● Flexible Rogoski coils are compact and versatile, by using insultaed gloves live
   installation of equipment without power interruption is realizable ● Fully isolated electrical structure, completely filtering out field disturbances ● Optional SD card for local storage and export of measuring data, convenient for data
   analysis ● Multi data output options available: standard with Modbus RTU, and optioinally wireless
   4G output. This enables more flexible remote and data analysis ● With harmonic distortion analysis to analyze power quality ● Easy-to-use, powerful HMI with 2.0" TFT color LCD display
ABUIABAEGAAgn-GAugYouaCgggcwkwk47Ac

Measuring Range

Output

Voltage Input

Current Input

Frequency Range

80 ~ 620 VAC (P-P)

10 ~ 1000 A (F601x) / 30 ~ 3000 A (F601x-H)

45 ~ 65 Hz

Digital Output (Standard)

Wireless Output (Option)

Modbus RTU (RS485)

4G Comm.

Accuracy

Operating Environment

Voltage Accuracy

Current Accuracy


Power Factor Accuracy

Active Power

Active Energy

0.2%

0.5% (10~1000 A, Accuracy not

guaranteed below 10 A)

±0.005

IEC62053-22 Class 0.2

IEC62053-22 Class 0.2S

Operating Temperature

Storage Temperature

Humidity

-25 ... +55 ℃

-40 ... +85 ℃

5 ... 95 %RH @ 50℃( Non-condensing )

Specification

Dimension

Wiring Methods

Display

Power


Installation

Optional Features

3PH3W / 3PH4W / 1PH2W / 1PH3W

2.0" TFT color LCD display (F601A)

85 ~ 265 VAC, 5 W， 45 ~ 65 Hz (F601A)

24 VDC, 3.5 W (F601B)

DIN-Rail

1GB SD card storage

Mass





Size

212 g (F601A)

125 g (F601B)

1540 g (F601A-P)

1453 g (F601B-P)

76×95×71 mm (L×W×H) (F601A)

145×91×41 mm (L×W×H) (F601B)

247.5×168.5×90 mm (L×W×H) (F601x-IOT)

EMC

Electrostatic Discharge

Radiation Immunity

Rapid Transient Immunity

Surge Immunity

Level IV (IEC61000-4-2)

Level III (IEC61000-4-3)

Level IV (IEC61000-4-4)

Level IV (IEC61000-4-5)

Conductivity Resistance

Magnetic Fields Immunity

Conducted & Radiated Emissions

Level III (IEC61000-4-6)

0.5mT (IEC61000-4-8)

Class B (EN55022)

Leaflet_F601A(B)_Rogowaki Coil Power Meter_FIX_EN_2024_V3.01.pdf
670.95KBDownload

to the end ~
