F601C(D) Economical Multi-parameter Measurement DIN-Rail Smart Power Meter

Product Advantages：	Wide Measuring Range ; No separate power supply required
Measurement Range：	Voltage Input: 3 × 100 V、 3 × 380 V、 3 × 57.7/100 V、 3 × 220/380 V ; Current Input: 3 × 1(6) A， 3 × 10(80) A；Frequency Range：45 ~ 65 Hz

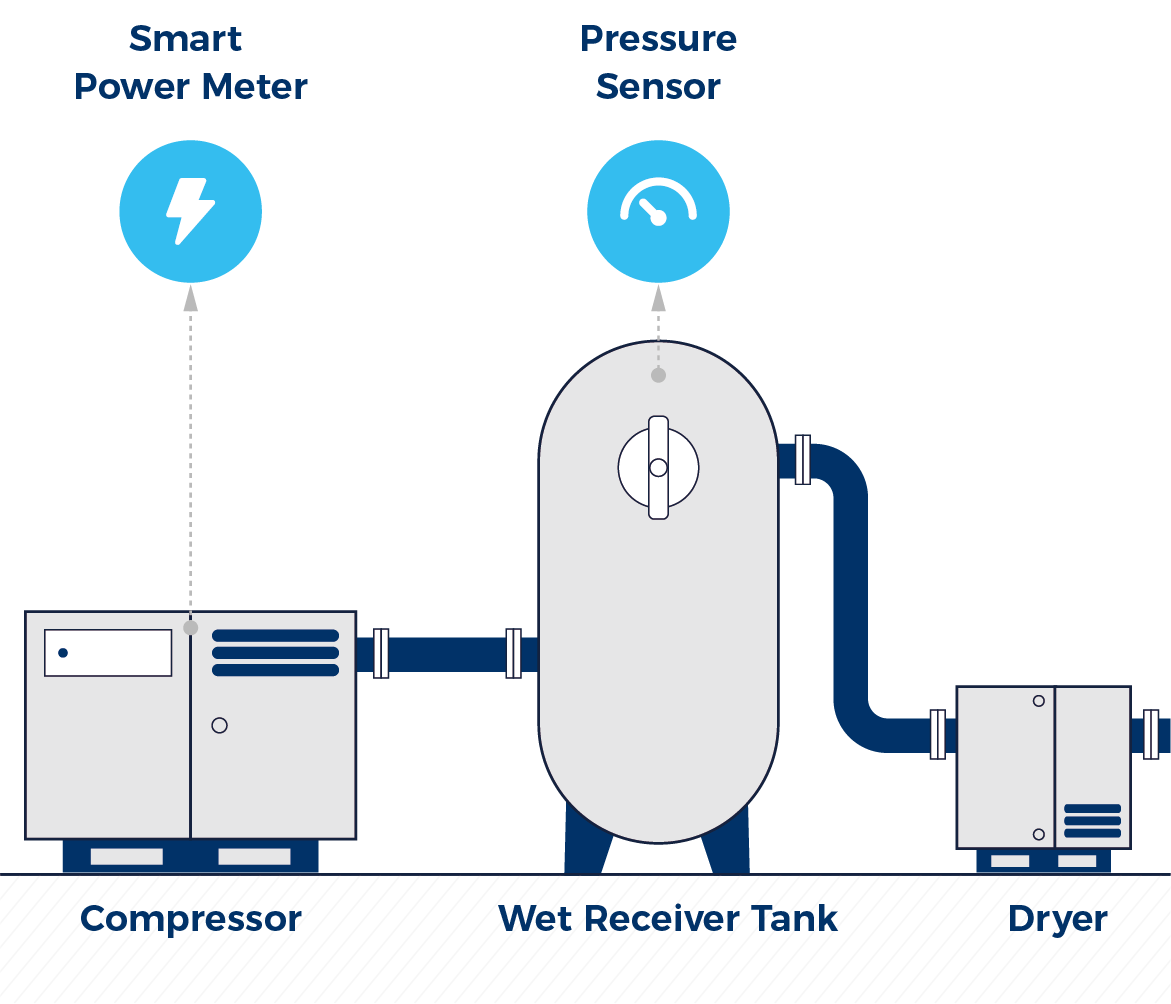

Product Overview

Smart power meter is one of the basic equipments for data collection of smart grid (especially smart distribution grid), which undertakes the tasks of original electric energy data collection, metering and transmission, and is the basis for realizing information integration, analysis and optimization, and information presentation The F601C(D) is an economical on-line smart meter for use with current transformers.If used with a voltage transformer, it can measure equipment with a voltage of 10 kV or above, and the specific current and voltage measuring range will depend on the type of transformer selected. The product is small in size and high in precision, and can accurately measure electrical energy, current, voltage, power factor and other signals and harmonic distortion, allowing the user to better manage the power consumption, in order to achieve energy saving, improve quality and efficiency

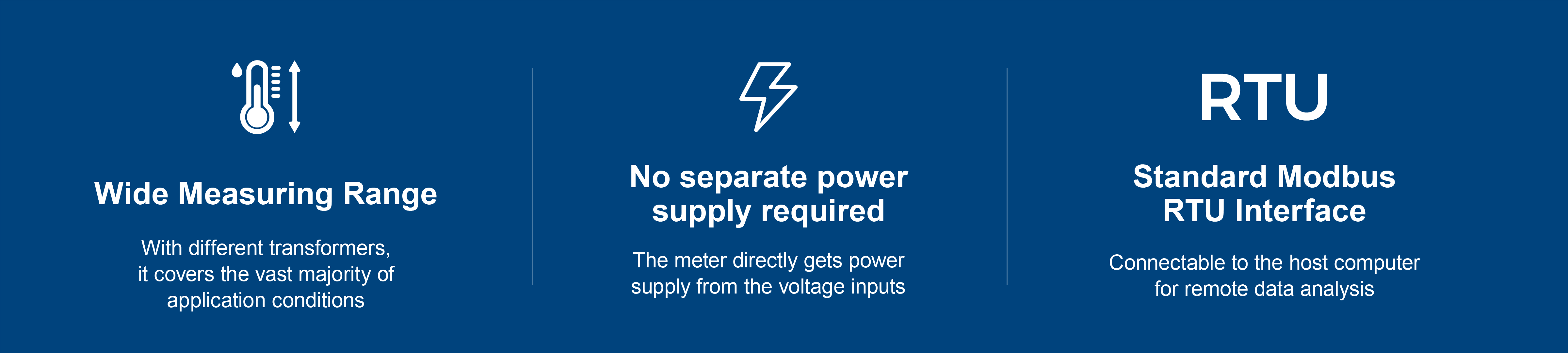

Advantages

Technical Data

Download

● Three-phase, three-wire or three-phase, four-wire connections available ● Wide measuring range, with access voltages of conventional 380 V or high voltage 10 kV. ● Fully isolated electrical structure, completely filtering out field disturbances ● Compatible with many different sizes of transformer access ● High measurement precision, accuracy class 0.5 ● Standard RS485 Modbus RTU interface also supports DL/T 645 ● With voltage total harmonic distortion analysis to analyze power quality

Measuring Range		Output
Voltage Input Current Input Frequency Range	3 × 100 V、 3 × 380 V、 3 × 57.7/100 V、 3 × 220/380 V 3 × 1(6) A， 3 × 10(80) A 45 ~ 65 Hz	Digital Output (Customized)	Modbus RTU (RS485) / DL/T645
Accuracy		Operating Environment
Voltage Accuracy Current Accuracy Active Power Active Energe	0.2% (Excluding transformer error） 0.2% (Excluding transformer error） 0.5% 0.5S	Operating Temperature Storage Temperature Humidity	-25 ... +55 ℃ -40 ... +85 ℃ 5 ... 95 %RH @ 50℃（Non-condensing）
Specification		Dimension
Wiring Methods Display Installation	3PH3W / 3PH4W 12-Bit LCD display, Backlight display DIN-Rail	Size	72×90×65 mm (L×W×H)

Leaflet_F601C(D)_DIN-Rail Smart Power Meter_FIX_EN_2024_V3.01.pdf

575.28KB

Download
